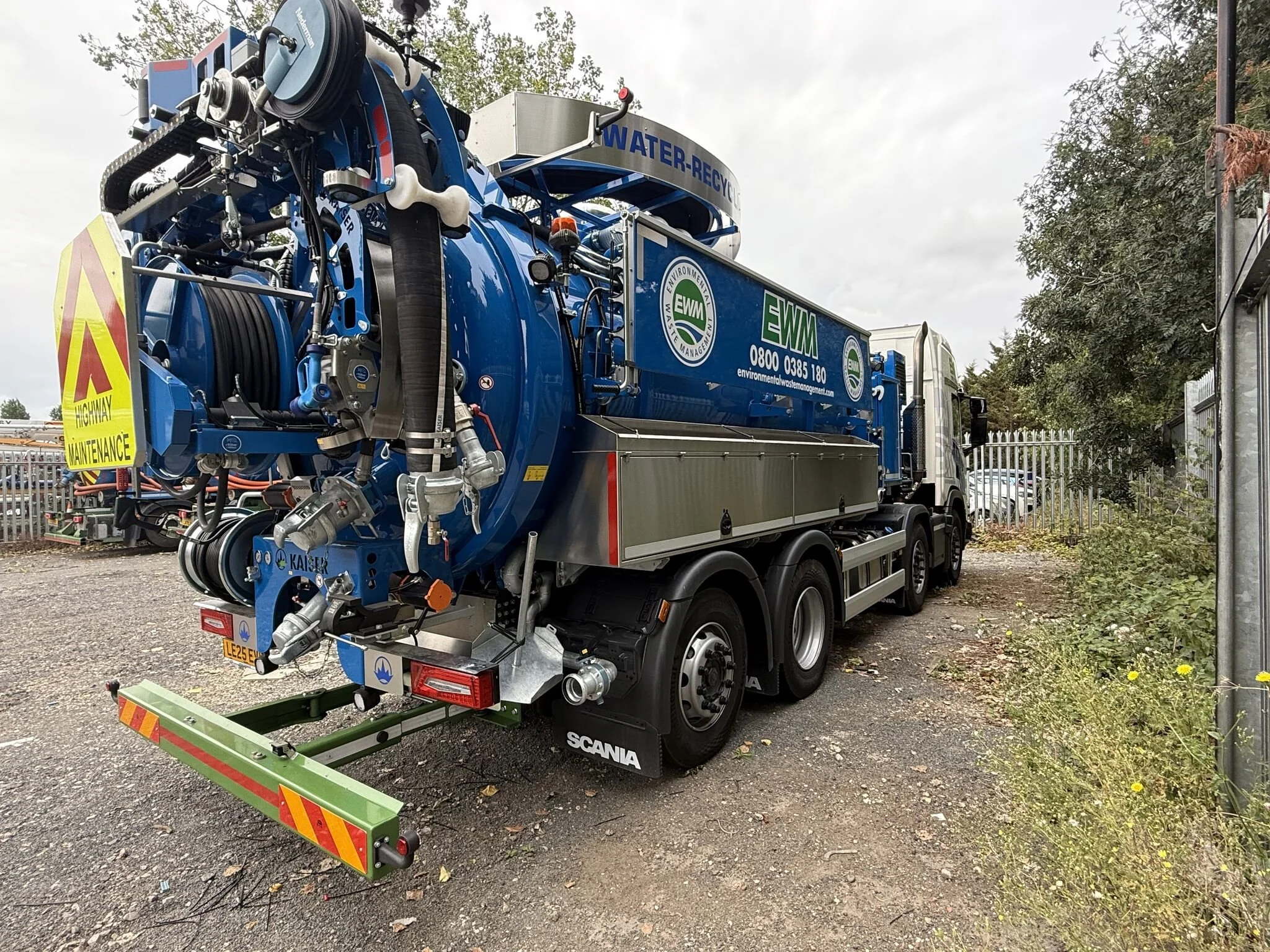

Kaiser AquaStar Recycler

The Kaiser AquaStar Recycler offers a perfect combination of performance and versatility. The KDU jetting pump delivers water at a rate up to 500 litres per minute (lpm) and water pressure of up to 200 bar. The large hose reel can accommodate up to a 300 metre jetting hose. With the KAISER vacuum pump, the maximum air throughput is 67.7 cubic metres per minute (m³/min) with a high vacuum of 85 kilopascals (kPa). Due to the combined jetting hose and suction boom, the vehicle can be positioned at a manhole for a sewer cleaning process that is both quick and safe. Due to the large hose reel capacity of up to a 17 metre suction hose, digtube extensions are not needed in most cases. The unique installation of the vacuum pump in the fresh water chamber serves for cooling, noise insulation as well as increases the suction power because of the short suction lines.

Key Points

• Recycling can save up to 24,000,000 litres of water per machine per year

• Divider door allowing the unit to be used as a clean water combination unit for special work

• Load sensing hydraulic drive giving a fuel efficient drive line, when the vacuum pump reaches full vacuum, it will slow down the pump until vacuum reduces and when using small jetting nozzles not requiring the maximum jetting flow it will automatically wind back the hydraulic to only produce the required hydraulic flow for the water flow required. This can make a 20% fuel saving

• Slow speed pressure transformer rather than a piston jetting pump. This pump has a high water displacement allow the piston to run at slow speed for high flow reducing wear

• Small vehicle foot print

• Low height approx. 3.5m

• Lightweight design giving approx. 12 tonne pay load
